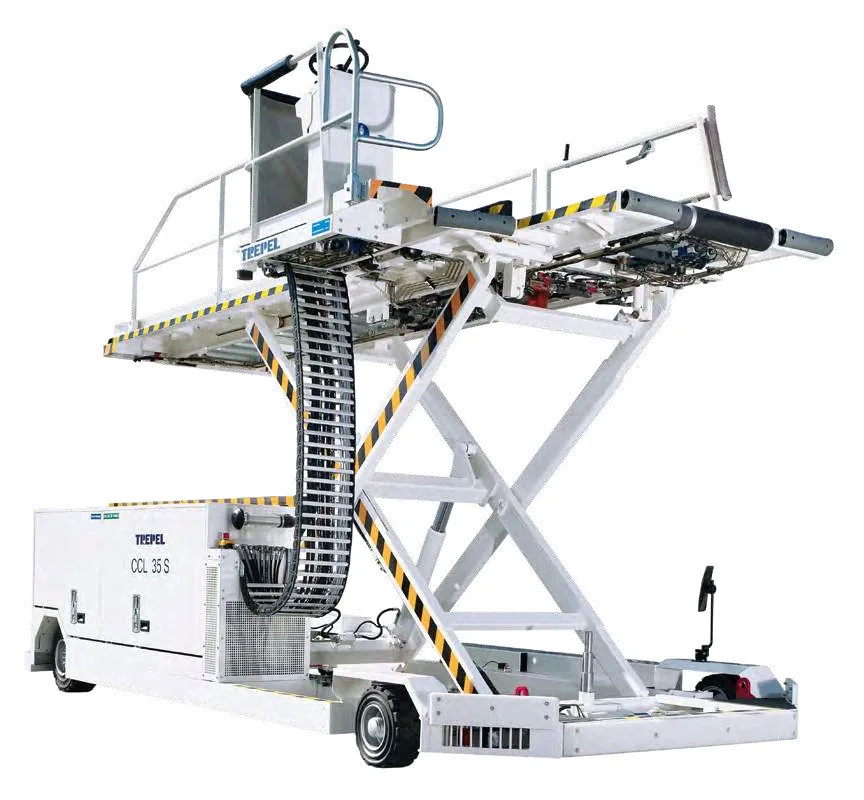

CCL 35 S
Loader transporter
An adaptive vehicle as transporter and loader for containers
Description
The CCL 35 S combines two vehicles in one – cargo high loader and transporter. Developed in the nineties for handling the A320 family, the CCL 35 S today is able to handle freight on all lower decks of commercial aircraft. The dolly train with containers can be parked anywhere around the aircraft allowing the CCL 35 S to act as a junction to transfer containers between the dollies and the aircraft.
This is a user-friendly and manoeuvrable loader-transporter allowing quick and economical freight loading and unloading. With several options available, the CCL 35 S is one of the most popular pieces of equipment on the apron today. Freight service on a faster level.
Technical specs
Performance
| Dimensions (L x W x H) | 6.520 x 2.900 x 1.600 mm (standard configuration) |
|---|---|
| Capacity (both platforms lift and transfer) | 3.500 kg |
| Lifting height platform | 485 to 3.500 mm |
| Loading width (between guide rails) | 1.620 mm |
| Driving speed | 15 km/h |
| Gradability | 5% |
| Turning radius | 8.500 mm |
Design

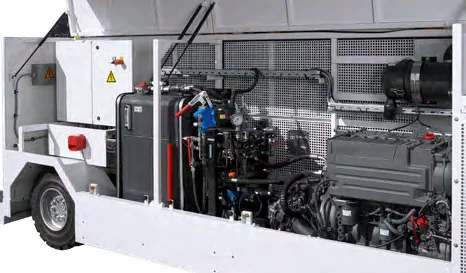

| Engine | Deutz 4-cylinder diesel D 2011 L04 (COM IIIA / EPA-TIER3) · Other engines or emission class on request |
|---|---|
| Transmission | Closed circuit hydrostatic drive system on rear wheel hub motors |
| Steering | Hydraulic power steering |
| Braking system | Dual circuit hydraulic operated drum brakes on rear wheels, additional spring-loaded multiple disk emergency parking brake |
| Platform system | Single platform with tilting system |

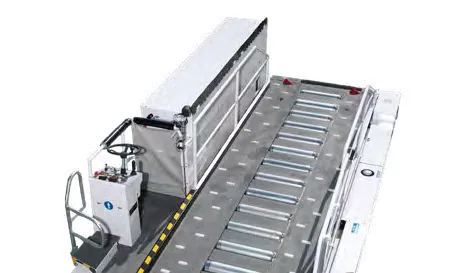

| Conveying system | Zinc-plated steel rollers for longitudinal transfer, side shift system on front of platform, hydraulically adjustable guide rails |
| Hydraulic system | Central hydraulic valve block, valves fitted with control light |
| Electric system | 24 V, relay controlled |
