TRANS 70
Container and pallet transporter
Fast, efficient and adaptive
Description

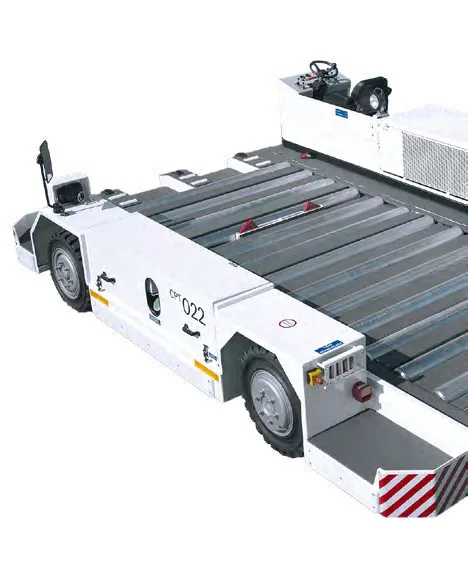

The TRANS 70 is a most versatile Container and Pallet Transporter. The modern concept of the TRANS 70 is designed to encounter all operational modes with the best performance. A dolly finger system can be added to adapt the TRANS 70 to your existing fleet of dollies. The small turning radius allows perfect manoeuvrability on the congested airport apron. The large wheels allow a comfortable drive on all kinds of road surfaces at a high driving speed.
The TRANS 70 is designed in a modular way that allows every customer to configure it according to their specific requirements. For example, the driving station can be fitted on either side of the vehicle.
Technical specs
Performance
| Dimensions (L x W x H) | 5.560 x 3.890 x 1.500 mm (standard configuration) |
|---|---|
| Capacity | 7.000 kg |
| Loading height front / rear | 450 to 690 mm / 450 to 540 mm |
| Loading width (between guide rails) | 2.500 mm |
| Loading length (between stops) | 3.285 mm |
| Ground clearance (driving position) | 150 mm |
| Driving speed | 32 km/h |
| Gradability | 8% |
| Turning radius | 6.700 mm |
Design

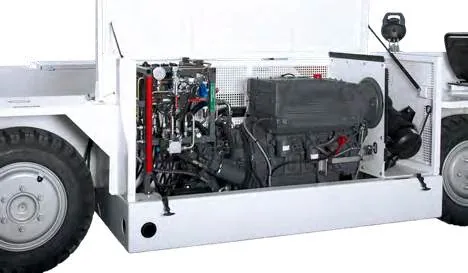

| Engine | Deutz 4-cylinder diesel TD 2011 L04 (COM IIIA / EPA-TIER3) · Other engines or emission class on request |
|---|---|
| Transmission | On the rear wheels, closed circuit hydrostatic drive system with automotive actuation |
| Steering | Hydraulic power steering |
| Braking system | Hydrostatic, dual circuit hydraulically powered disc brake, additional spring-loaded emergency parking brake |
| Hydraulic system | Central hydraulic valve block, valves fitted with control light |
| Electric system | 24V, relay controlled |
