TOWBARs

Towbars · In stock

for aircraft towing and pushback operations

Description

Towbars for pushback and towing of aircraft by the nose landing gear — from business jets, turboprops and helicopters to the A380 and B747 — in four versions: dedicated, universal, modular and fly-away. Every towbar meets the aircraft manufacturer’s requirements for strength, dimensions and shear pins and is delivered ready for operation.

Tell us your aircraft types and your tractors, and we will select the towbars and tow heads for your fleet.

Request a quote

Technical specs

Four versions

Dedicated D	Built for one aircraft type or family, with hydraulic height adjustment.
Universal U	One tow head and one set of shear pins for several types, with no reconfiguration: narrow-body, also in 2-piece and 3-piece versions — A220 · A318 – A321 · B737 · E190-E2 / E195-E2 · SSJ100 · C919; wide-body — A300 / A310 (clamp type) · A330 · A340-200 / -300 · A350 · B767 · B777 · B787 · C-17 · IL-96 · L-1011 · DC-10 / MD-11; lock pin type — A300 / A310 · B707 / B727.
Modular M	One tow body with exchangeable tow heads for regional aircraft, business jets and helicopters: another type needs only another head. L — with a long tow tube
Fly-away F	A lighter, split version carried on board the aircraft.

Aircraft coverage

available · L with a long tow tube · D dedicated · U universal · M modular · F fly-away

Airbus 9Boeing & MD 10Other airliners 13Regional 22Business jets 23Helicopters 3

Airbus
Aircraft	Dedicated D	Universal U	Modular M	Fly-away F
A220-100 / -300	yes	yes	Lyes, with a long tow tube	yes
A300 / A310, clamp type	yes	yes	no	yes
A300 / A310, lock pin type	no	yes	no	yes
A318 / A319 / A320 / A321, incl. neo and ACJ	yes	yes	no	yes
A330-200 / -300 / -800neo / -900neo, MRTT; A340-200 / -300	yes	yes	no	yes
A340-500 / -600	yes	no	no	yes
A350-900 / -1000	yes	yes	no	yes
A380-800	yes	no	no	yes
C-295 / CN-235	yes	no	no	no

Boeing and McDonnell Douglas
Aircraft	Dedicated D	Universal U	Modular M	Fly-away F
B707 / B727, lock pin type	no	yes	no	yes
B717, MD-80 / MD-90, DC-9	yes	no	yes	no
B737 Classic / NG / MAX, BBJ, clamp type	yes	yes	no	yes
B747-100 / -200 / -300 / -SP / -400 / -400ER / -8	yes	no	no	yes
B757-200 / -300	yes	no	no	yes
B767-200 / -300 / -400ER	yes	yes	no	yes
B777-200 / -200ER / -200LR / -300 / -300ER / F	yes	yes	no	yes
B787-8 / -9 / -10	yes	yes	no	yes
C-17 Globemaster III	yes	yes	no	yes
DC-10 / MD-11	yes	yes	no	no

Other airliners and transport aircraft
Aircraft	Dedicated D	Universal U	Modular M	Fly-away F
COMAC C919	yes	yes	no	yes
Embraer E170 / E175 / E190 / E195, Lineage 1000, except E2	yes	no	Lyes, with a long tow tube	yes
Embraer E190-E2 / E195-E2	yes	yes	Lyes, with a long tow tube	yes
Sukhoi Superjet 100	yes	yes	yes	yes
Irkut MC-21	yes	no	no	no
Ilyushin IL-76	yes	no	no	no
Ilyushin IL-96	yes	yes	no	yes
Tupolev TU-154	yes	no	no	no
Tupolev TU-204 / TU-214	yes	no	no	yes
Yakovlev YAK-42	yes	no	no	yes
Lockheed L-100 / C-130 Hercules	yes	no	Lyes, with a long tow tube	yes
Lockheed L-1011	no	yes	no	yes
Antonov AN-12	yes	no	no	no

Regional aircraft and turboprops
Aircraft	Dedicated D	Universal U	Modular M	Fly-away F
ATR 42 / 72	yes	no	yes	no
Antonov AN-24 / AN-26 / AN-30 / AN-32	yes	no	Lyes, with a long tow tube	no
Antonov AN-148 / AN-158	yes	no	yes	no
BAE 146 / Avro RJ	yes	no	yes	no
BAE Jetstream 31 / 32	no	no	yes	no
BAE Jetstream 41	no	no	yes	no
Bombardier CRJ100 / 200 / 700 / 900 / 1000	yes	no	yes	no
Dash 8-100 / -200 / -300	yes	no	yes	no
Dash 8 Q400	yes	no	yes	no
DHC-6 Twin Otter, Mitsubishi MU-2	no	no	yes	no
Dornier 328	no	no	yes	no
Embraer EMB 120	no	no	yes	no
Embraer ERJ 135 / 140 / 145	yes	no	yes	no
Fokker 50 / 60	yes	no	yes	no
Fokker 70 / 100	yes	no	Lyes, with a long tow tube	no
LET L-410	no	no	yes	no
Saab 340 / 2000	yes	no	yes	no
Tupolev TU-134	yes	no	Lyes, with a long tow tube	no
Yakovlev YAK-40	no	no	Lyes, with a long tow tube	no
Beechcraft King Air 200 / 1300	no	no	yes	no
Pilatus PC-12	no	no	yes	no
Piaggio P.180 Avanti	no	no	yes	no

Business jets
Aircraft	Dedicated D	Universal U	Modular M	Fly-away F
Bombardier Challenger 300 / 350	no	no	yes	no
Bombardier Challenger 600 / 601 / 604 / 605 / 650	no	no	yes	no
Bombardier Challenger 850 / 870 / 890	yes	no	yes	no
Bombardier Global 5000 / 6000, XRS, Express	yes	no	yes	no
Bombardier Global 7500 / 8000	no	no	yes	no
Bombardier Learjet	no	no	yes	no
Cessna Citation I / II / V, CitationJet	no	no	yes	no
Cessna Citation III / VI / VII / X / XL / XLS+, Latitude, Longitude	no	no	yes	no
Dassault Falcon 10 / 20 / 100 / 200	no	no	yes	no
Dassault Falcon 50EX / 900EX / 2000EX	no	no	yes	no
Dassault Falcon 7X / 8X	no	no	yes	no
Embraer Phenom 100	no	no	yes	no
Embraer Phenom 300	no	no	yes	no
Embraer Legacy 450 / 500, Praetor 500 / 600	no	no	yes	no
Embraer Legacy 600 / 650	yes	no	yes	no
Gulfstream G150 / G200 / G250 / G280	no	no	yes	no
Gulfstream GIV / GV / G300 – G700	no	no	yes	no
Hawker 400XP, Premier I, Beechjet 400	no	no	yes	no
Hawker 800 / 850XP / 900 / 1000, HS-125	no	no	yes	no
Hawker 4000	yes	no	yes	no
HondaJet HA-420	no	no	yes	no
Eclipse 500	no	no	yes	no
Pilatus PC-24	no	no	yes	no

Helicopters
Aircraft	Dedicated D	Universal U	Modular M	Fly-away F
Mil MI-8 / MI-17	yes	no	yes	no
AgustaWestland AW101 (EH101, CH-149)	no	no	yes	no
AgustaWestland AW139	no	no	yes	no

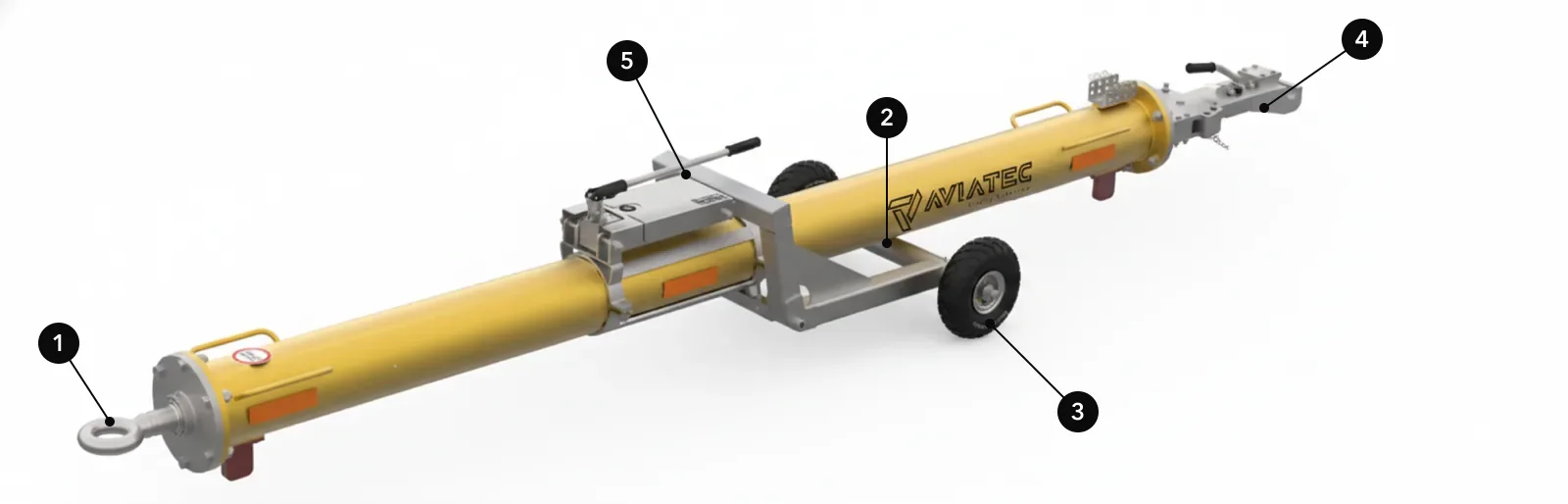

Options

1Revolving toweye, with or without shock absorber — compensates for torsional forces generated when operating on uneven surfaces. The shock absorber version additionally dampens jerks during starting and braking, providing smoother and safer towing.
2Floating axle — the bar moves, the wheels stay: quicker hook-up to the nose gear
3Solid rubber tyres — no punctures, less maintenance
4Revolving towhead — controlled rotation around its own axis compensates for torsional forces, reducing stress on the aircraft nose landing gear and towbar.
5Undercarriage — height set by a hand pump; fixed wheels on light modular bars

Also available

Split version	The bar comes apart in two for storage and shipping, including by air; transport boxes on request.
Fly-away version	Smaller and lighter, carried on board the aircraft it serves.
Tow tube length	A longer tube or an extension for the aircraft that need one, marked L in the table above.
Tow head holder	Keeps the exchangeable heads of a modular bar in order and ready to hand.
Paint	Any colour; Skydrol-resistant.

General data

Standard equipment	Two shear pins in the tow head, spares in a holder on the bar · safety wire that keeps a broken shear pin off the apron (FOD) · support that protects the tow head when parked · Skydrol-resistant paint
Manufacturing	100% within the European Union, from certified materials, with quality control at every stage of production and assembly
Engineering	3D modelling, structural analysis and motion simulation: strength, deformation, frequency characteristics, ergonomics, operational safety
Compliance	CE marking; EN, ISO and IATA AHM requirements
Certification and approvals	EN ISO 9001 and AQAP 2110 (NATO); approved by Airbus, Boeing, ATR, COMAC and others
