CHAMP 140
Cargo high loader
Universal main deck loader
Description
The CHAMP 140 combines the advantages of a lower and main deck loader with excellent reliability. Due to its bogie wheel system on its rear axle, the CHAMP 140 is easy and safe to manoeuvre. Additional features and options make sure the CHAMP 140 meets all customers’ requirements.
The CHAMP 140 handles all pallets and containers up to a weight of 14 tons and a length of 20 feet at lower and main deck level. With its high performance and availability the CHAMP 140 runs for top handling procedure. Freight handling with higher quality.
Technical specs
Performance
| Dimensions (L x W x H) | 11.400 x 4.400 x 3.900 mm (standard configuration) |
|---|---|
| Capacity | 14.000 kg main platform lift and transfer · 14.000 kg front platform transfer |
| Lifting height front / main platform | 1.900 to 5.600 mm / 485 to 5.600 mm |
| Loading width (between guide rails) | 3.250 mm |
| Driving speed | 15 km/h |
| Gradability | 5% |
| Turning radius | 13.000 mm |
Design

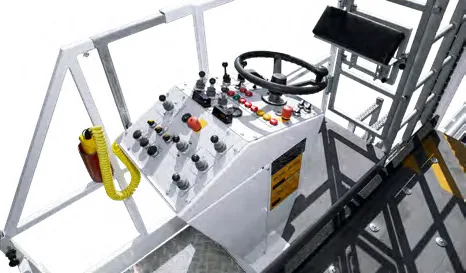

| Engine | Deutz 4-cylinder diesel TCD 2012 L04 2V (COM IIIA / EPA-TIER3) · Other engines or emission class on request |
|---|---|
| Transmission / axles | Open circuit hydrostatic drive system on steering front axle, bogie wheel system on rear axle |
| Steering | Hydraulic power steering |
| Braking system | Dual circuit hydraulic multiple disc brake, additional spring-loaded emergency parking brake, dynamic brake system |
| Stabilisers | 6 hydraulically operated stabilisers |

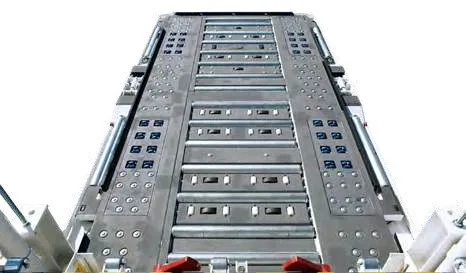

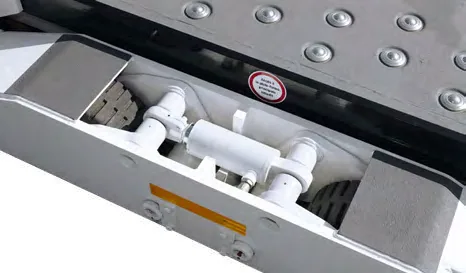

| Conveying system | Zinc-plated steel rollers for longitudinal transfer, side loading and rotating on rear of main platform, side loading on front of main platform, hydraulically operated stops and guide rails on main platform |
| Hydraulic system | Central hydraulic valve block, valves fitted with control light, electrically powered hydraulic emergency system to lower platforms and lift stabilisers |
| Electric system | 24V, relay controlled |
CHAMP 140e
Electric cargo high loader
The electric-powered all-rounder
Description
With a total propulsion of around 150 kW distributed over 3 asynchronous electric motors dedicated and dimensioned for specific tasks such as driving or lifting, the CHAMP 140e is one of the most effective and versatile electric-powered main deck loaders on the market.
Equivalent to its Diesel brother regarding handling and operating, the CHAMP 140e is the perfect emission-free complement for your GSE fleet.
Technical specs
Performance
| Dimensions (L x W x H) | 11.400 x 4.400 x 3.900 mm (standard configuration) |
|---|---|
| Capacity | 14.000 kg main platform lift and transfer · 14.000 kg front platform transfer |
| Lifting height front / main platform | 1.900 to 5.600 mm / 485 to 5.600 mm |
| Loading width (between guide rails) | 3.272 mm (FPF) / 3.286 mm (MPF) |
| Driving speed | 13 km/h |
| Gradability | 7% |
| Turning radius | 14.000 mm |
Design

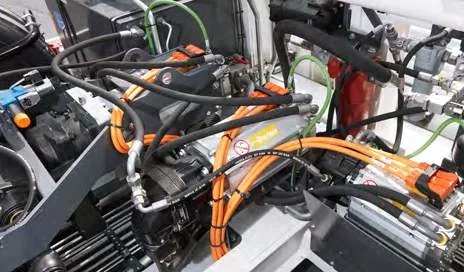

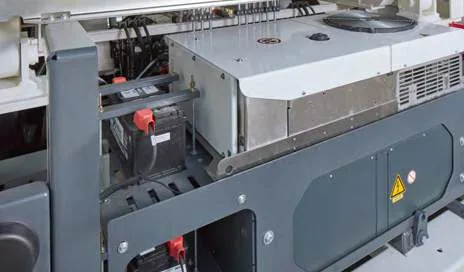

| Engine / Propulsion | 3 electric motors · Drive 60 kW* · MPF lifting 60 kW* · FPF lifting and operating hydraulic system 36 kW* · Traction battery: 400 V liquid-cooled lithium-ion battery |
|---|---|
| Transmission / axles | Direct electric drive on front axle |
| Steering | Hydraulic power steering |
| Braking system | Dual circuit hydraulic brake system, multiple wet disc brakes |
| Stabilisers | 6 hydraulically operated stabilisers |
| Conveying system | Zink-plated steel rollers for longitudinal transfer, transversal drive units on front platform, hydraulically adjustable guide rails on front platform, side loading and ULD rotation on rear of main platform |
| Hydraulic system | Priority valve for steering and brakes circuit, valves with control light |

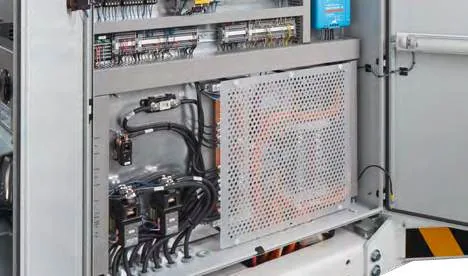

| Electric system | 24V DC, combination of common relays and PLC controllers. Where possible, control logic functions processed by the PLC |
*Effective power
